Lightweight Dual Wheel Differential AGV

Category: AGV
Views: 1
Release: 2023/04/15
Inquiry

Detailed

AGV is a type of autonomous vehicle that is self driven and equipped with non-contact guidance devices. Its main function is to enable the car to travel and stop at designated locations with precision according to path planning and job requirements under computer monitoring, completing a series of job functions.

AGV is characterized by wheeled movement and has advantages such as speed, high efficiency, simple structure, strong controllability, and good safety compared to walking, crawling, or other non wheeled mobile robots. It can be well coordinated with commonly used stacker cranes, monorail carts, conveyor belts, conveyor chains, and conveyor rollers in material transportation.

The activity area of AGV does not require the installation of fixed devices such as tracks and support frames, and is not limited by the site, roads, and space. Therefore, in automated logistics systems, Z can fully demonstrate its automation and flexibility, achieving efficient, economical, and flexible unmanned production.

Product Introduction

Lightweight dual wheel differential AGV, applied to lightweight material transportation, has flexible driving mode and can shuttle through various narrow spaces. The route can be directly programmed by the user, which can meet flexible production needs and maximize the production efficiency of enterprises.

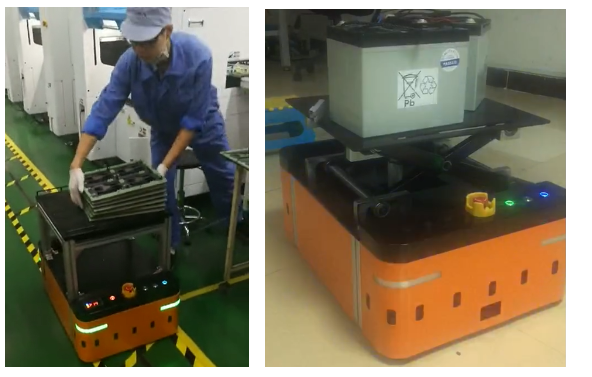

　轻型双轮差速AGV 　

Product features and application scenarios

1. Small in size, lightweight and flexible.

2. Magnetic navigation, high cost-effectiveness, precise positioning

3. It can rotate 360 degrees and shuttle freely in extremely narrow spaces.

4. Top modular configuration, handling platform, lifting, drum or conveyor belt, etc.

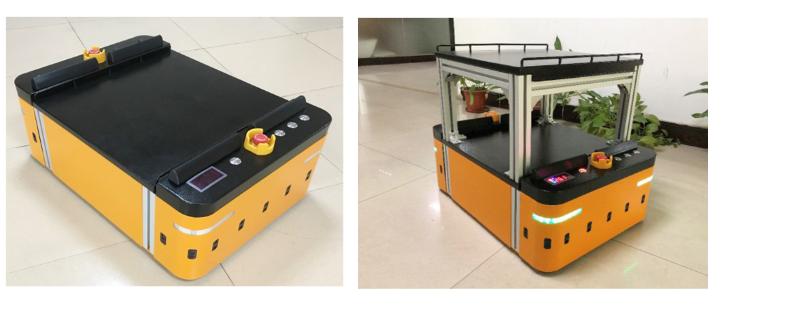

轻型双轮差速AGV

Operation mode

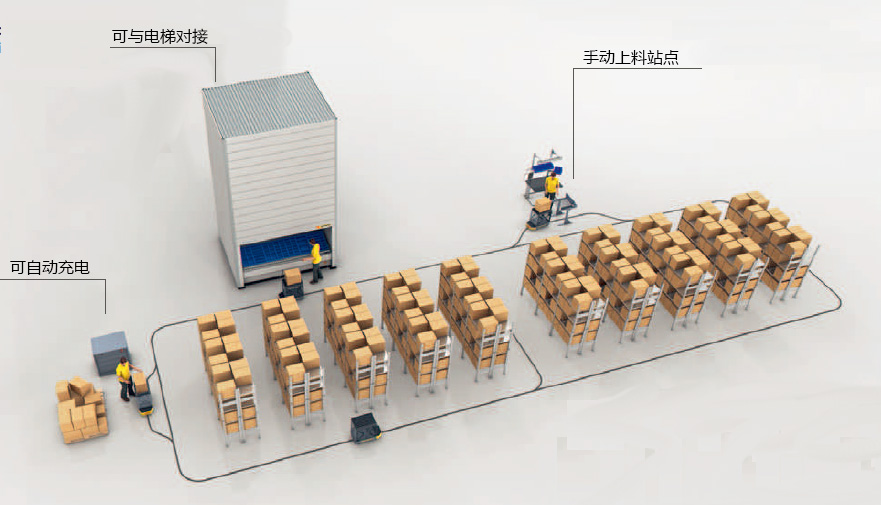

The lightweight two wheel differential AGV has a compact appearance and flexible walking direction, making it suitable for workshops with limited space, such as feeding in SMT workshops.


Product parameters and specifications

Product Name	Lightweight Dual Wheel Differential AGV	Product Dimensions	L700mm X W500mm X H300mm
AGV Model	SL-AGV-700BF-01	Turning Radius	≥500mm
Navigation Type	Magnetic Stripe Guidance	Navigation Accuracy	±10mm
Walking Direction	Forward / Backward / Turn / Rotate in Place	Stop Accuracy	±10mm
Network Mode	WIFI	Climbing Capacity	≤2°
Drive Type	Differential Control	Way of Working	24-hour homework
Drive Power Supply	DC24V	Charging Method	Manual Charging / Automatic Charging
Rated Load	100KG (customizable)	Storage Battery	Lead Acid Battery / Lithium Battery
Type of Transportation	Backpack	Alarm Method	Voice Reminder + Sound and Light Alarm
Life	≥10 years	Deadweight	50KG
Walking Speed	6m/min-42m/min
Safety Sensing Range	≤ 3m adjustable, emergency braking distance less than 20mm
Safety Protection	Dual protection of forward obstacle detection sensor and mechanical collision avoidance mechanism
