AGV is a type of autonomous vehicle that is self driven and equipped with non-contact guidance devices. Its main function is to enable the car to travel and stop at designated locations with precision according to path planning and job requirements under computer monitoring, completing a series of job functions.

AGV is characterized by wheeled movement and has advantages such as speed, high efficiency, simple structure, strong controllability, and good safety compared to walking, crawling, or other non wheeled mobile robots. It can be well coordinated with commonly used stacker cranes, monorail carts, conveyor belts, conveyor chains, and conveyor rollers in material transportation.

The activity area of AGV does not require the installation of fixed devices such as tracks and support frames, and is not limited by the site, roads, and space. Therefore, in automated logistics systems, Z can fully demonstrate its automation and flexibility, achieving efficient, economical, and flexible unmanned production.

Product Introduction

Traction type AGV, after arriving at the designated location, manually hangs the material truck on the traction hook (which can be automatically attached). The AGV reads landmark instructions through magnetic strip guidance, pulls the material truck to the designated location, and automatically unloads it. Multiple material trucks can be towed at once, and this vehicle has a multi station selection function. Widely used for material and finished product handling in industries such as automobiles and home appliances.

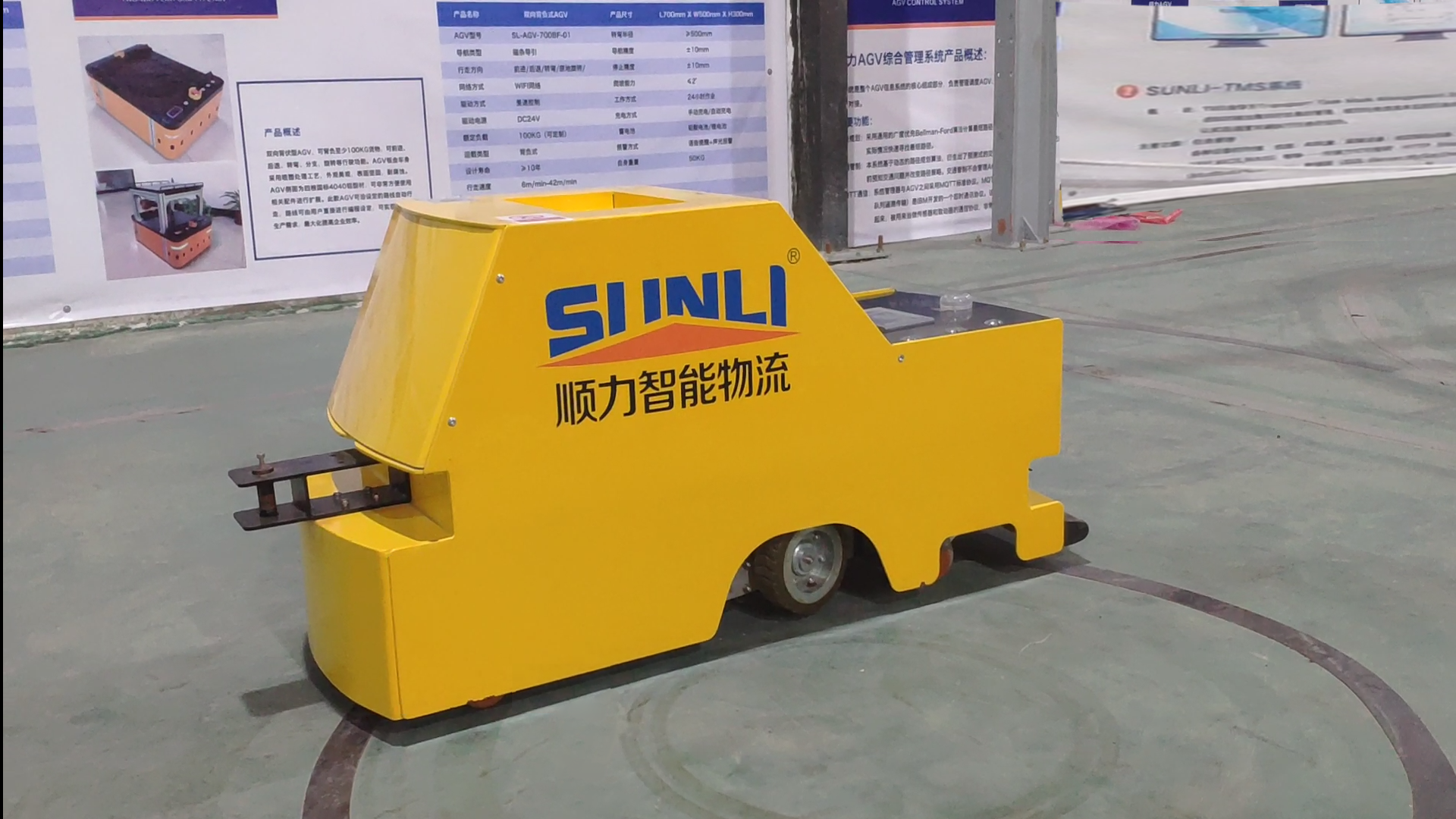

Traction AGV

Product features and application scenarios

1. Compared to traditional assembly line routes, it is more flexible.

2. Magnetic navigation, high cost-effectiveness, precise positioning.

3. Utilize its own traction mechanism to achieve automatic coupling or uncoupling of the material truck.

4. Four fold safety protection (sound and light, obstacle avoidance sensor, mechanical collision avoidance device, emergency stop button).

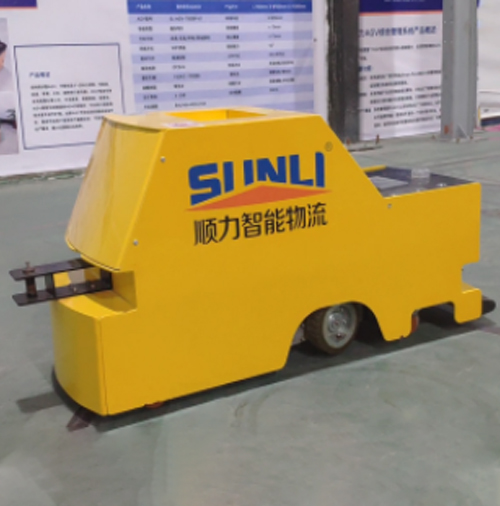

Traction AGV

Operation Mode

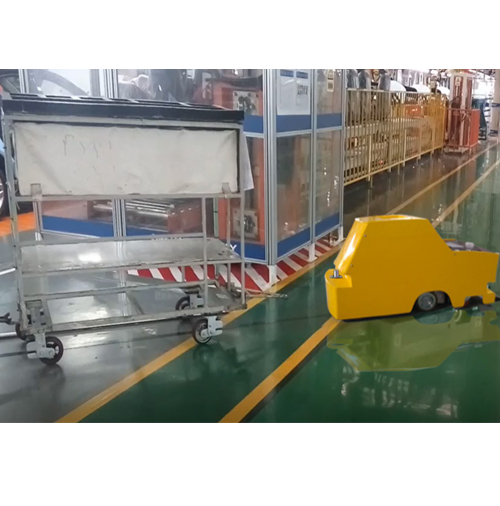

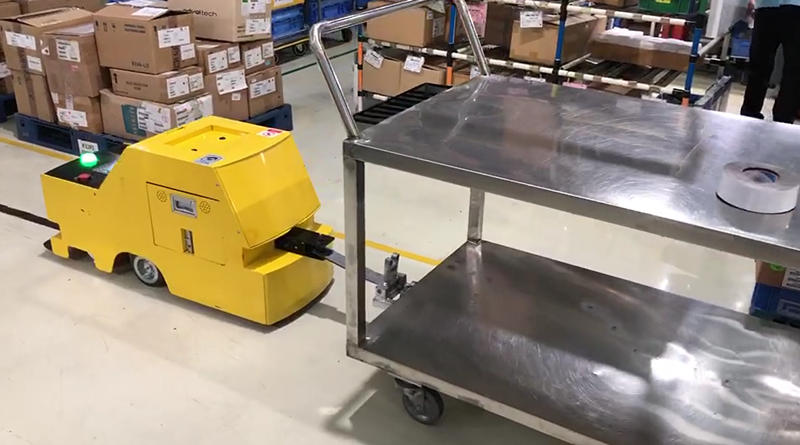

The hook of the material cart is connected to the tail traction rod of the traction AGV, and the traction AGV pulls the material cart to the set position.

Product parameters and specifications

Product Name	Traction AGV	Product Dimensions	L1178mm X W420mm X H578mm
AGV Model	SL-AGV-1178QY-01	Turning Radius	≥600mm
Navigation Type	Magnetic Stripe Guidance	Navigation Accuracy	±10mm
Walking Direction	Forward/Turn	Stop Accuracy	±10mm
Network Mode	WIFI / RF	Climbing Capacity	≤2°
Drive Type	Differential Control	Way of Working	24-hour homework
Drive Power Supply	DC24V	Charging Method	Manual Charging / Automatic Charging
Rated Load	500KG/1000KG	Storage Battery	Lead Acid Battery / Lithium Battery
Type of Transportation	Traction Type	Alarm Method	Voice Reminder + Sound and Light Alarm
Life	≥10 years
Walking Speed	Straight full load walking at 0~35m/min; Linear no-load walking at 0~45m/min; Turning 0~15m/min
Safety Sensing Range	≤ 3m adjustable, emergency braking distance less than 20mm
Safety Protection	Dual protection of forward obstacle detection sensor and mechanical collision avoidance mechanism
