AGV is an unmanned automated vehicle that is powered by its own agile belt and equipped with non-contact guidance devices. Its main function is to enable the car to travel and stop at designated locations with precision according to path planning and job requirements under computer monitoring, completing a series of job functions.

AGV is characterized by wheeled movement and has advantages such as speed, high efficiency, simple structure, strong controllability, and good safety compared to walking, crawling, or other non wheeled mobile robots. It can be well coordinated with commonly used stacker cranes, monorail carts, conveyor belts, conveyor chains, and conveyor rollers in material transportation.

The activity area of AGV does not require the installation of fixed devices such as tracks and support frames, and is not limited by the site, roads, and space. Therefore, in automated logistics systems, Z can fully demonstrate its automation and flexibility, achieving efficient, economical, and flexible unmanned production.

Backpack AGV

Product Introduction

The method of transporting goods by AGV is to load the goods onto the vehicle and then transport them. The main structure consists of the AGV body and the carrying line body. The carrying line body of AGV can be drum line, chain line, belt line, etc. The line body can be powered or unpowered. The AGV automatically travels to the transfer line according to the system instructions, and then the goods are transported from the transfer line to the AGV, and then the AGV transports the cargo unit away.

Product Features

1. The AGV body can be in any form, and the wire body it carries is in a superimposed relationship with the body;

2. AGV can use various navigation methods, including laser, magnetic stripe, inertia, etc;

3. The surface height of the AGV's carrying line is level with the connecting line;

4. The AGV's own power supply provides all the necessary power.

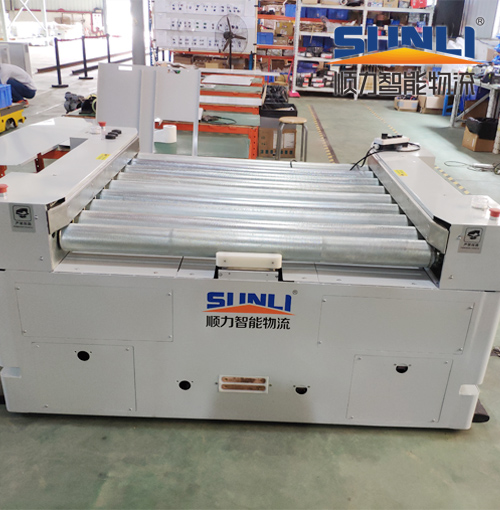

Backpack AGV car

Product Performance

No.	Project	Description
1	Guidance method	Laser, magnetic stripe, inertia
2	Walking function	Forward, backward, turn, side shift
3	Drive and steering mode	Omnidirectional drive and steering
4	Rated Load	1000kg or made as required
5	Forward speed	Max 60m/min
6	Turning speed	Max 30m/min， Adjustable according to actual application
7	Enforcement machinery	Backpack
8	Braking method	Deceleration motor, electromagnetic brake
9	Guidance accuracy	±10mm
10	Parking accuracy	±5mm
11	Work noise	≤65dB（A）
12	Battery configuration	48V or 24V, lithium battery or maintenance free lead-acid battery or nickel chromium battery
13	Communication frequency	Wifi 802.11 2.4GHZ
14	Contact method	Wifi
15	Security system	Non contact protection+protective fence+emergency stop button
