Unidirectional latent AGV

Category: AGV
Views: 1
Release: 2023/04/15
Inquiry

Detailed

AGV is an unmanned automated vehicle that is powered by its own agile belt and equipped with non-contact guidance devices. Its main function is to enable the car to travel and stop at designated locations with precision according to path planning and job requirements under computer monitoring, completing a series of job functions.

AGV is characterized by wheeled movement and has advantages such as speed, high efficiency, simple structure, strong controllability, and good safety compared to walking, crawling, or other non wheeled mobile robots. It can be well coordinated with commonly used stacker cranes, monorail carts, conveyor belts, conveyor chains, and conveyor rollers in material transportation.

The activity area of AGV does not require the installation of fixed devices such as tracks and support frames, and is not limited by the site, roads, and space. Therefore, in automated logistics systems, Z can fully demonstrate its automation and flexibility, achieving efficient, economical, and flexible unmanned production.

Product Introduction

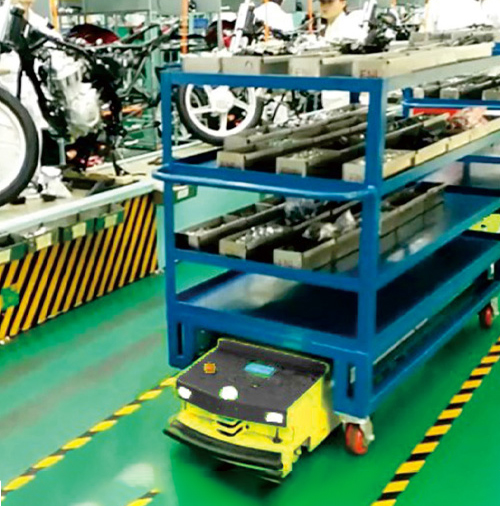

The one-way latent AGV lurks to the bottom of the trolley and uses its own traction mechanism to automatically attach or detach the material truck. This model has a compact structure and flexible walking, and is widely used in many industries such as automobiles, home appliances, electrical appliances, electronics, etc.

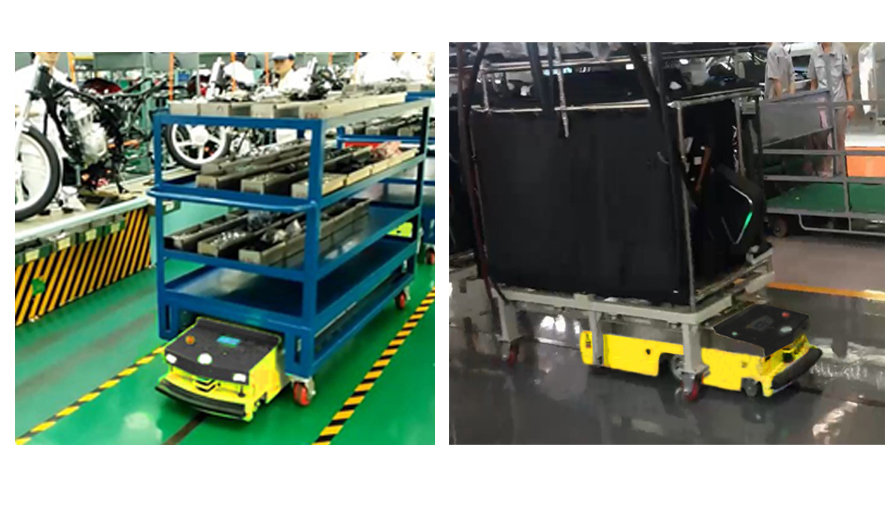

Product features and application scenarios

1. Compared to traditional assembly line routes, it is more flexible.

2. Magnetic navigation, high cost-effectiveness, precise positioning.

3. The vehicle is compact and flexible, suitable for various working environments.

4. Four fold safety protection (sound and light, obstacle avoidance sensor, mechanical collision avoidance device, emergency stop button).

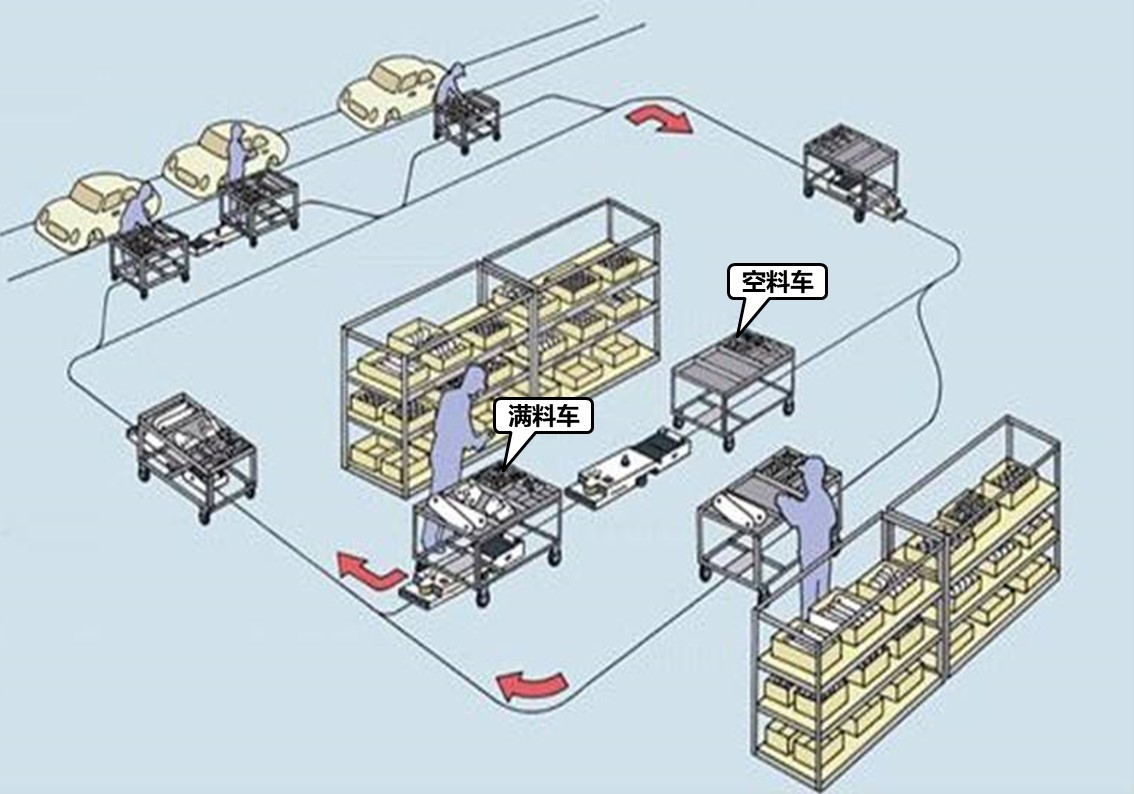

Operation Mode

Product parameters and specifications

Product Name	Unidirectional Latent AGV	Product Dimensions	L1400mmXW420mmXH290mm
AGV Model	SL-AGV-1400DX-01	Turning Radius	≥700mm
Navigation Type	Magnetic Stripe Guidance	Navigation Accuracy	±10mm
Walking Direction	Forward / Turn	Stop Accuracy	±10mm
Network Mode	WIFI / RF	Gradeability	≤2°
Drive Type	Differential Control	Way of Working	24-hour homework
Drive Power Supply	DC24V	Charging Method	Manual Charging / Automatic Charging
Rated Load	500KG/800KG	Storage Battery	Lead Acid Battery / Lithium Battery
Type of Transportation	Latent Type	Alarm Method	Voice Reminder + Sound and Light Alarm
Life	≥10 years
Walking Speed	Straight full load walking at 0~35m/min; Linear no-load walking at 0~45m/min; Turning 0~15m/min
Safety Sensing Range	≤ 3m adjustable, emergency braking distance less than 20mm
Safety Protection	Dual protection of forward obstacle detection sensor and mechanical collision avoidance mechanism
