Elevating AGV Car

Category: AGV
Views: 1
Release: 2023/04/15
Inquiry

Detailed

AGV is an unmanned automated vehicle that is powered by its own agile belt and equipped with non-contact guidance devices. Its main function is to enable the car to travel and stop at designated locations with precision according to path planning and job requirements under computer monitoring, completing a series of job functions.

AGV is characterized by wheeled movement and has advantages such as speed, high efficiency, simple structure, strong controllability, and good safety compared to walking, crawling, or other non wheeled mobile robots. It can be well coordinated with commonly used stacker cranes, monorail carts, conveyor belts, conveyor chains, and conveyor rollers in material transportation.

The activity area of AGV does not require the installation of fixed devices such as tracks and support frames, and is not limited by the site, roads, and space. Therefore, in automated logistics systems, Z can fully demonstrate its automation and flexibility, achieving efficient, economical, and flexible unmanned production.

Elevating AGV

Product Introduction

A lift type AGV is equipped with a lifting mechanism above the vehicle body, which can raise and lower goods. The main body consists of AGV body and lifting mechanism. During work, AGV needs to walk to the bottom of the cargo unit and then the lifting mechanism lifts the cargo. After transportation to the destination, the lifting mechanism descends to lower the cargo.

Product Features

1. The car body can be made relatively small;

2. There needs to be space underneath the cargo unit to accommodate vehicles;

3. The AGV's own power supply provides all the necessary power;

4. The steering method adopts differential steering.

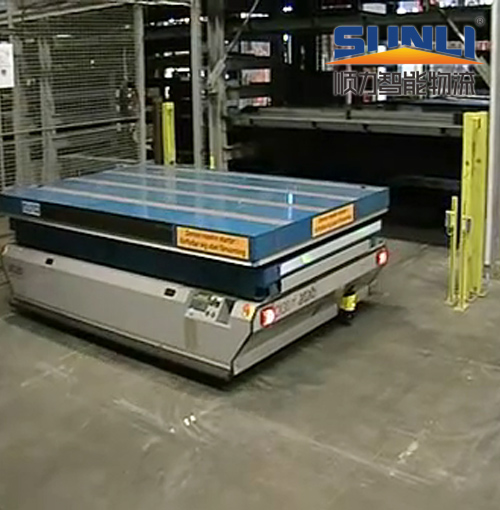

Elevating AGV car

Product Characteristic

No.	Project	Description
1	Guidance method	Laser, magnetic stripe, inertia
2	Walking function	Forward, backward, turn, side shift
3	Drive and steering mode	Omnidirectional drive and steering
4	Rated Load	1000kg or made as required
5	Forward speed	Max 60m/min
6	Turning speed	Max 30m/min， Adjustable according to actual application
7	Enforcement machinery	Lift mechanism
8	Braking method	Deceleration motor, electromagnetic brake
9	Guidance accuracy	±10mm
10	Parking accuracy	±5mm
11	Work noise	≤65dB（A）
12	Battery configuration	48V or 24V, lithium or nickel chromium battery
13	Communication frequency	Wifi 802.11 2.4GHZ
14	Contact method	Wifi
15	Security system	Non contact protection+protective fence+emergency stop button
