Shunli WCS Warehouse Control System

The automated logistics system is based on reliable data sources and flexible algorithm control support, which can automate and intelligentize operations, reduce labor costs, improve efficiency, enhance information technology levels, and improve competitive advantages for enterprises. Guangdong Shunli Industrial Equipment Co., Ltd. has mature experience in developing and implementing automated logistics systems.

Shunli Intelligent Warehouse Control System (WCS):

Shunli Intelligent Warehouse Control System (WCS) is a layer of management and control system between WMS system and PLC system. On the one hand, it interacts with the WMS system, receives instructions from the WMS system, and sends them to the PLC system, thereby driving the vertical warehouse and conveying equipment to produce corresponding mechanical actions. On the other hand, it reflects the status and data of the PLC system in real-time on the interface, and provides a manual debugging interface for the PLC system and conveyor line.

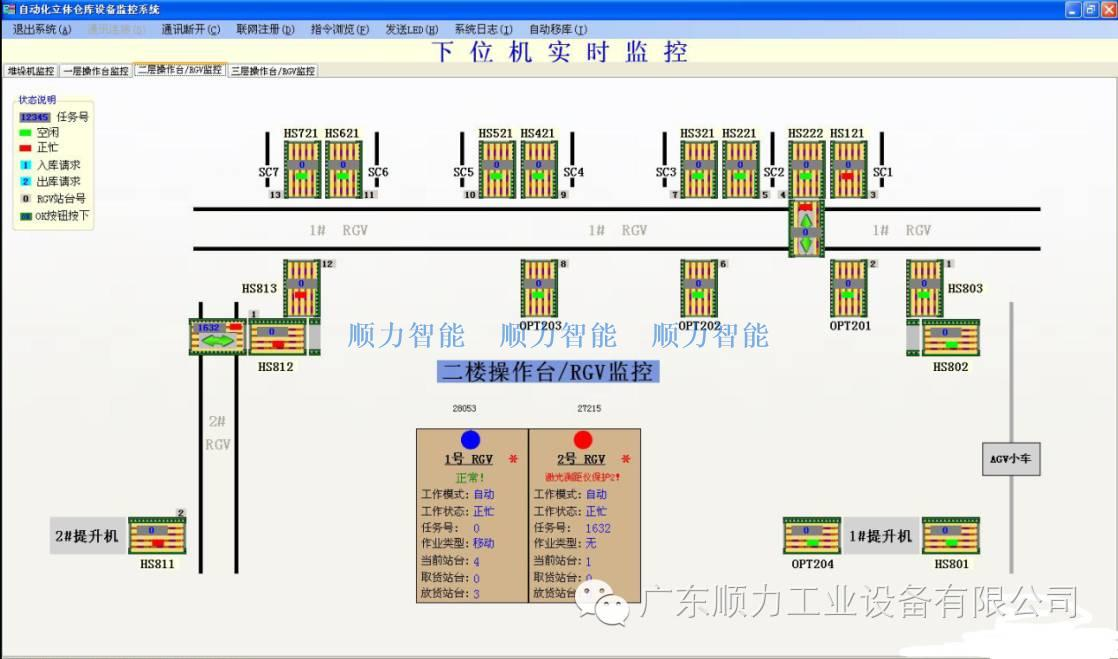

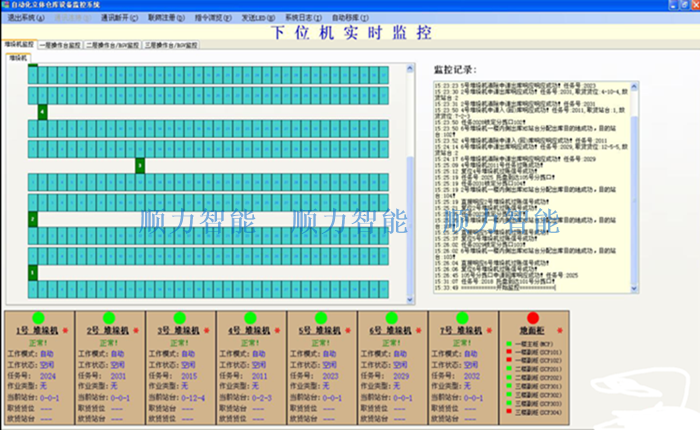

Real time monitoring screen of WCS system

·Support global screen display;

·Support partial screen display;

·Support real-time dynamic images;

·Stop status, running status, fault status, disabled status, etc. are displayed in different colors or animations.

Parameter settings:

·Read the current parameters of the device from the PLC;

·Provide a parameter setting interface;

·Write modified device parameters to the PLC;

·Support parameter initialization function.

Manual control:

·Provide control functions such as start stop, seal release, reset, data clearing, initialization, etc. for vertical storage and conveyor line equipment.

Task Management (Backend):

·Read barcode information from PLC;

·Send barcode information and device number to WMS, and receive direction information returned by WMS;

·Send task instructions (including route information) to the PLC;

·Read the return value of PLC task instructions and determine whether the instructions have been completed;

·If the task instruction return value is not read before reading the new barcode, the task is recorded as incomplete; The unfinished task does not affect the sending of subsequent task instructions.

System log:

·Task log: including device number, task serial number, barcode information, route information, execution result, task initiation time, task completion time, etc;

·System fault log: including equipment type, fault code, fault description, fault level, fault occurrence time and other information;

·Operation log (manual control): including control instructions, device codes, execution results, instruction issuance time, instruction completion time, and operator.

Advantages of Shunli WCS system:

·A unified device control platform for unified scheduling and control of different types of devices, improving information transmission efficiency and reducing information equipment investment costs;

·Fully consider the logistics characteristics of different industries, including order size, customer habits, and the requirements of special logistics operations in different industries;

The system architecture platform has flexibility and scalability, and can support efficient integration of different devices, as well as effective integration of device control systems and upper computer WMS systems.
